* Excellent Anti-interference--DSSS&FHSS communication technology makes AT9S Pro transmitter with stable transmission signal and long range control up to 2.1 miles(3.4km) in air.
* Powerful Features--10/12 channels, telemetry(work with PRM-03), throttle cut, dual-rate, switch assignments, programmable mix control, fail safe, reverse polarity protection, multiple model options, etc.
* Safety Remind- RSSI alert, radio/receiver/model low voltage alarm. With DD sounds, vibration, and words alarming display on the LCD screen to remind when you are in noisy surroundings.

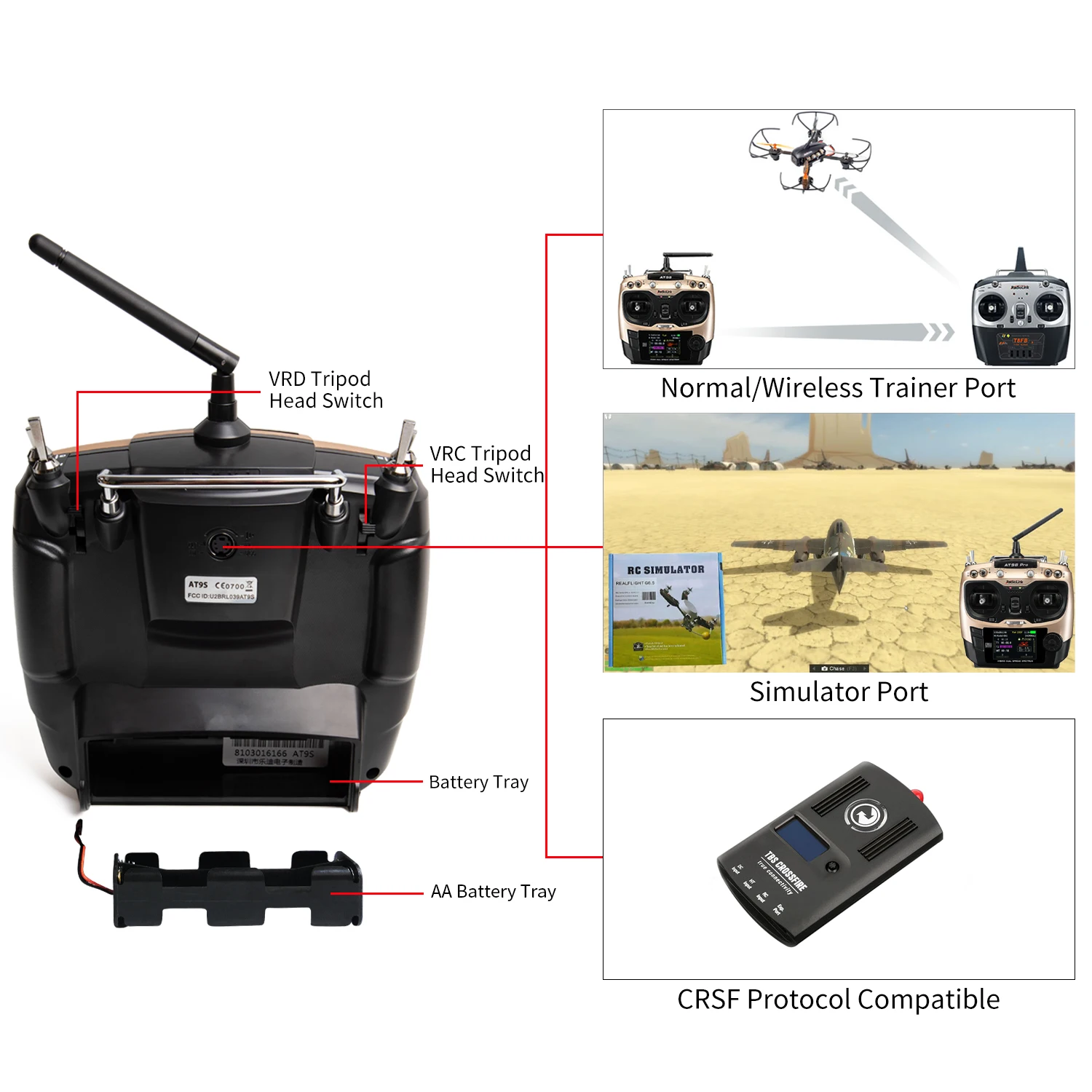

* Additional Function--3 in 1 multi-function port, support most of simulator, TBS Crossfire Protocol (915 Module), Wireless Trainer mode support. (all sold separately)
* Equipped with RC airplane, helicopter, glider, multirotor, car and boat programming and 15-model memory capacity. Compatible with R12DS, R12DSM, R9DS, R6DS, R6DSM receivers.
AT9S Pro Transmitters Specifications
|

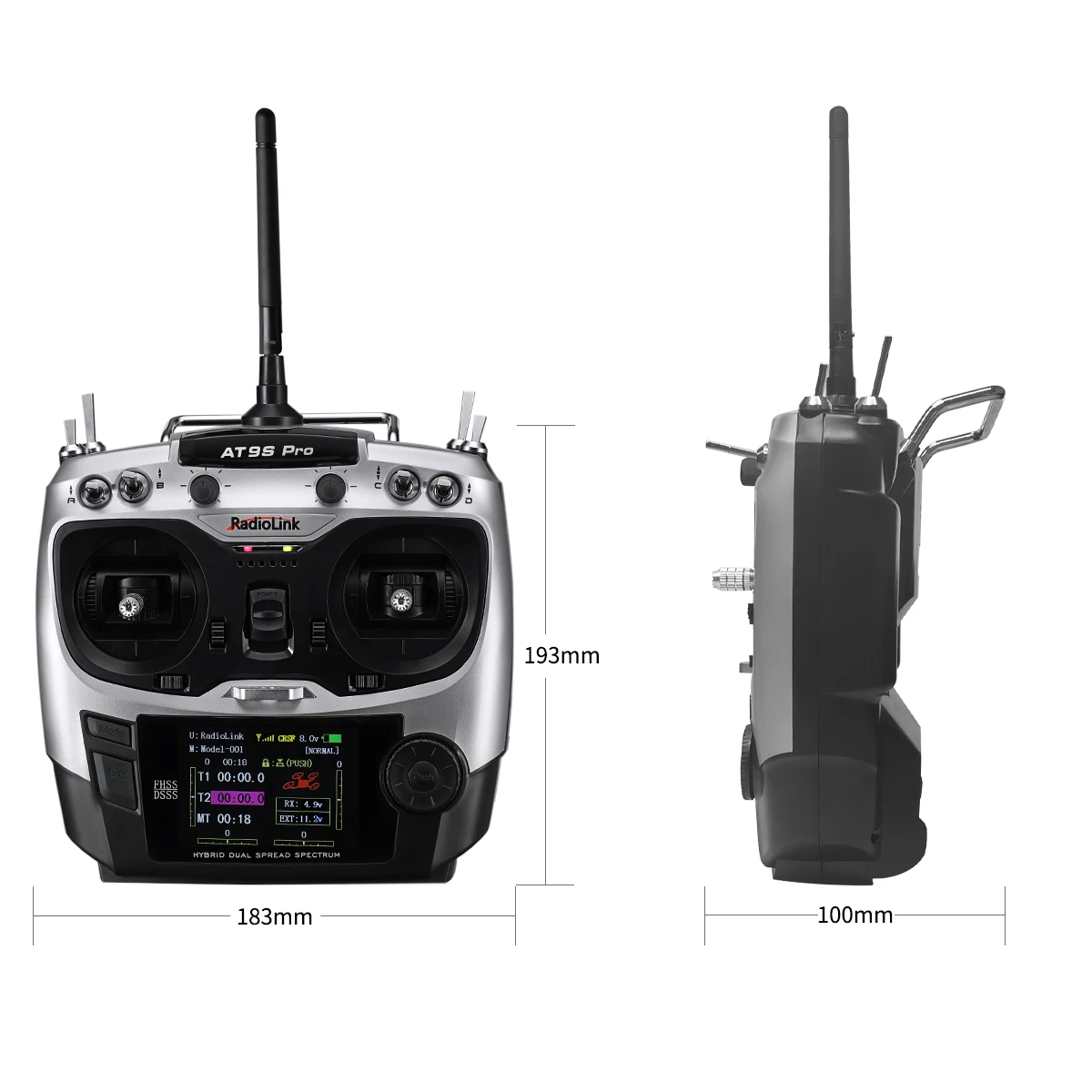

Dimension
|
183*100*193mm(7.2”*3.9”*7.6”)
|
|
Battery Case Dimension
|
116*36*32mm(L*W*H=4.57"*1.42"*1.26")
|
|
Weight
|
0.88kg
|
|
Frequencies Band
|
2.4GHz ISM(2400MHz~2483.5MHz）
|
|
Modulation Mode
|
QPSK
|
|
Bandwidth
|
5.0MHz
|
|
Spread Spectrum Mode
|
DSSS&FHSS/CRSF
|
|
ACPR
|
>38dbm
|
|
Transmission Power
|
① DSSS&FHSS: <100mW(20dbm) ② CRSF: 10mW/25mW/100mW/500mW/1W/2W(Optional) |
|
Operating Current
|
① DSSS&FHSS: < 90mA@12V ② CRSF: Depends on the transmission power selected |
|
Operating Voltage
|
7.4～18.0V(8pcs AA battery, a 2S-4S LiPo or 18650 Lithiumbattery)
|
|
Channel Quantity
|
10/12 (all twelve channels can be programmed)
|
|
Signal Output
|
PWM/SBUS/PPM/CRSF
|
|
Compatible receivers
|
12CH - R12DSM, R12DS; 10CH- R9DS(Std), R6DS, R6DSM; CRSF: RX from BLACKSHEEP
|
|
Adaptable Models
|
Rotary Wing/Fixed wing/Glider/Multicopter/Car/Boat/Robot
|
|
Simulator Mode
|
Yes, with radio frequency off to save battery power
|
|
Storage Model Quantity
|
15
|

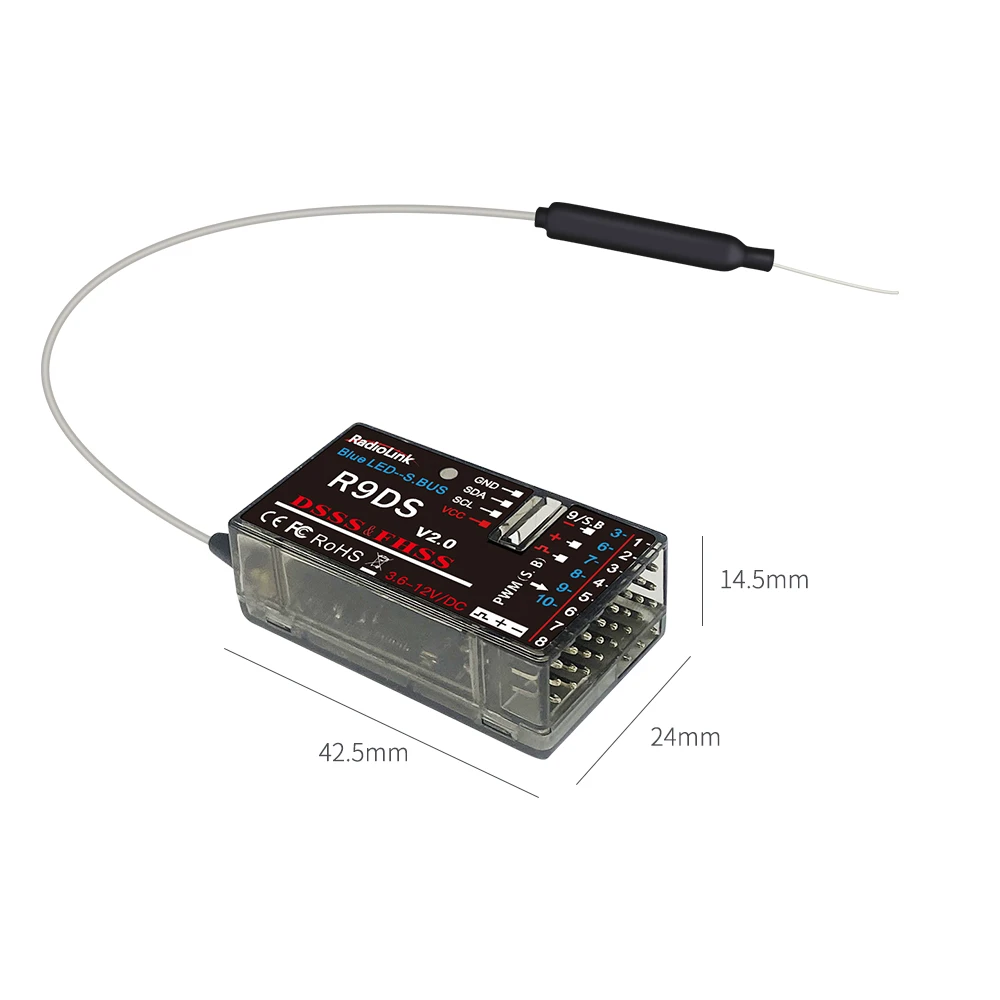

R9DS 9/10 Channels Receiver Specifications
|
Dimension
|
43*24*15mm (1.69"*0.94"*0.59")
|
|
Weight
|
10.5g (0.37oz)
|
|
Channels Quatity
|
9 channels for PWM signal output; 10 channels for SBUS&PWM signal output
|
|
Signals
|
SBUS&PWM
|
|
Operating Voltage
|
3~10V
|
|
Operating Current
|
38-45mA@5V
|
|
Section Precision
|
4096, 0.25us per section
|
|
Control distance
|
4000 meters(2.48Miles) in the air, 2000 meters(1.24Miles) on the ground (Maximum range tested in unobstructed areas free of interference and may vary depending on local regulations) |
|
Compatible with extended telemetry module
|
PRM-01 and PRM-03
|
|
Compatible transmitter:
|
AT10II/AT10/AT9S Pro/AT9S/AT9
|
* Excellent Anti-interference: with DSSS&FHSS pseudo random algorithm to give R9DS with excellent anti-interference ability.
* 9/10 Channels: Support PWM/SBUS signal output, works with Radiolink AT9/AT9S/AT9S Pro/AT10/AT10II. Please make sure SYSTEM channel selection is 10ch mode when it works with AT10II 12 channels transmitter, or it won't workwell.
* Fast Response: High resolution ratio of 4096, the stability of 0.5us, to provide a quicker, low-latency connection for the driver.
* Long Range Control: outstanding control range up to 2.1 miles on air. (Depends on the actual using environment)
* Quick to Bind and Anti-polarity Protection: no need any setting on transmitter when R9DS bind with radio. With reverse polarity protection circuit, not damage the receiver even you plug wrong polarity.
* 9/10 Channels: Support PWM/SBUS signal output, works with Radiolink AT9/AT9S/AT9S Pro/AT10/AT10II. Please make sure SYSTEM channel selection is 10ch mode when it works with AT10II 12 channels transmitter, or it won't workwell.
* Fast Response: High resolution ratio of 4096, the stability of 0.5us, to provide a quicker, low-latency connection for the driver.
* Long Range Control: outstanding control range up to 2.1 miles on air. (Depends on the actual using environment)
* Quick to Bind and Anti-polarity Protection: no need any setting on transmitter when R9DS bind with radio. With reverse polarity protection circuit, not damage the receiver even you plug wrong polarity.
AT9S Pro Simulator Interface Purpose
Switch Indication
|
AT10II
|
AT9S Pro
|
T8FB BT
|
T8S BT
|
|
|
Channels
|
12 Channels
|
10/12 Channels
|
8 Channels
|
8 Channels
|
|
Signal Output
|
PWM/PPM/SBUS
|
PWM/PPM/SBUS
|
PWM/PPM/SBUS
|
PWM/PPM/SBUS
|
|
Control Range
|
2.5 Miles
|
2.1 Miles
|
1.2 Miles
|
1.2 Miles
|
|
Dimensions(L*W*H)
|
7.1*3.7*8.7 in
|
7.2*3.9*7.6 in
|
6.8*4*8.1 in
|
6.4*3.7*2.2 in
|
|
Weight
|
33.5 oz
|
31 oz
|
16.6 oz
|
5.0 oz
|
|
Package
|
AT10II/R12DS/PRM-01
|
AT9S Pro/R9DS/Strap
|
T8FB/R8EF
|
T8S/R8EF
|
|
Model Support
|
Glider, Airplane, Multirotor, Helicopoter, Car, Boat, Robot etc
|
Glider, Airplane, Multirotor, Helicopoter, Car, Boat, Robot etc
|
Glider, Airplane, Multirotor, Car, Boat, Robot etc
|
Glider, Airplane, Multirotor, Car, Boat, Robot etc
|

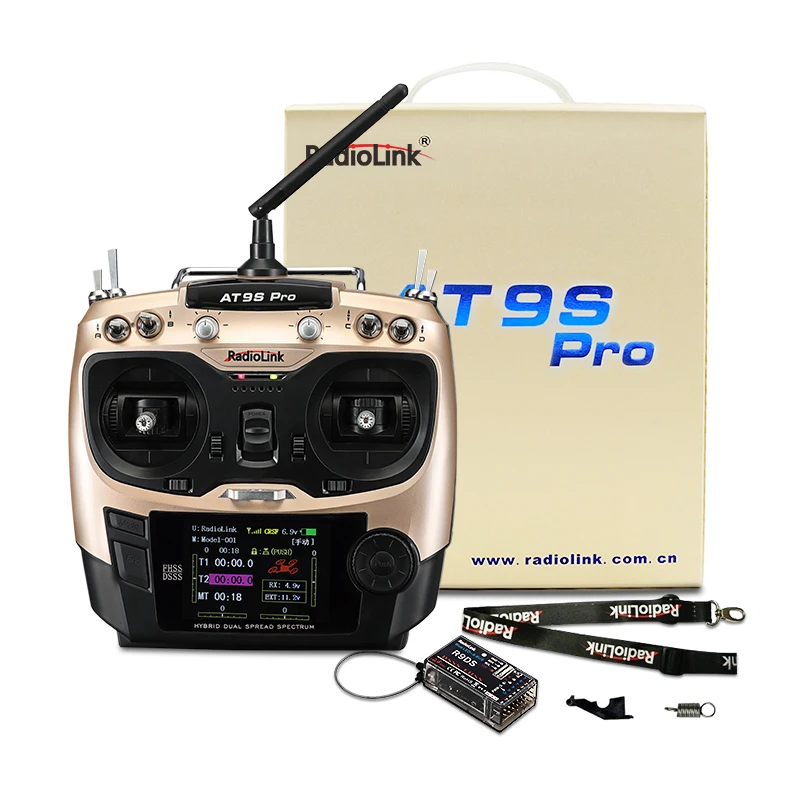

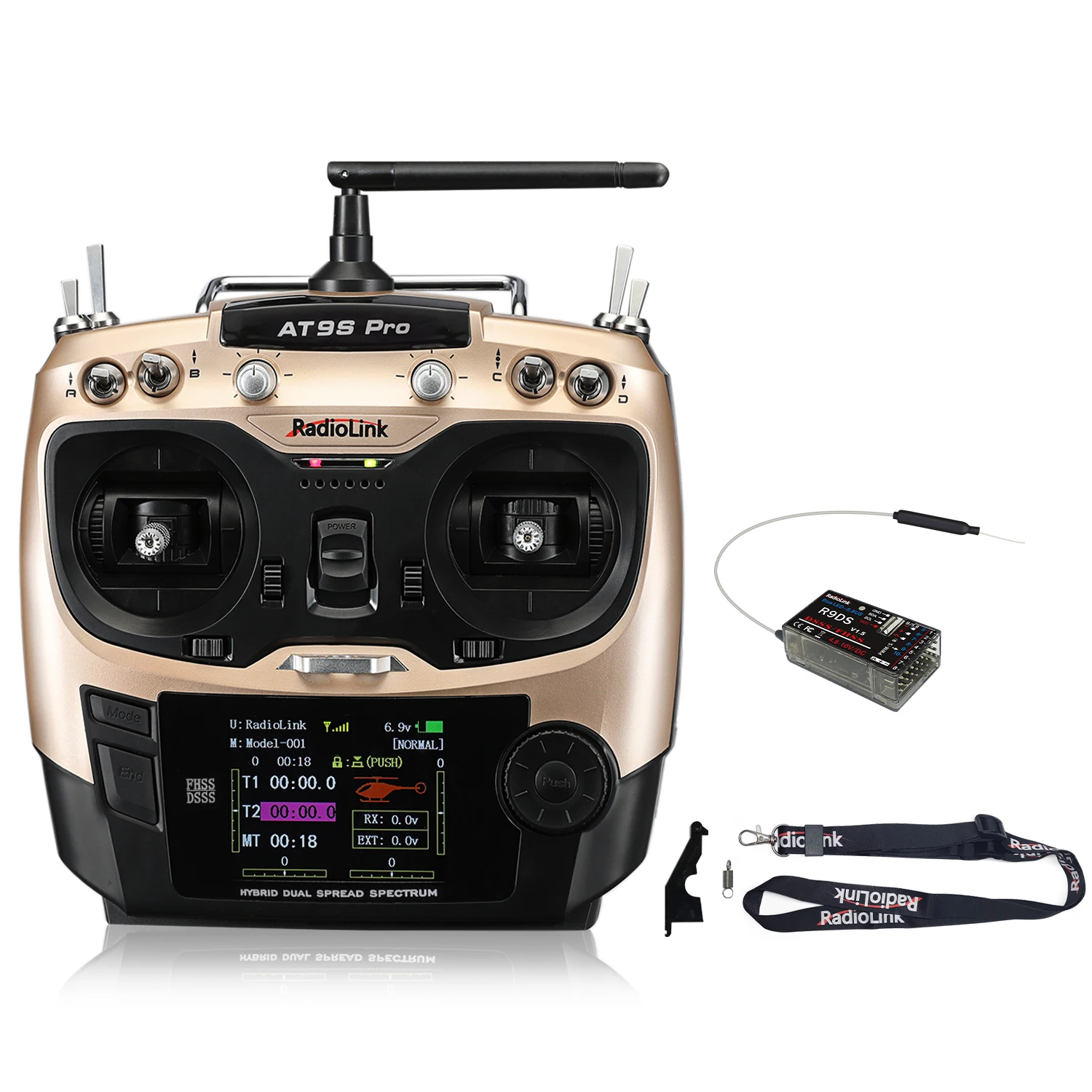

What Can You Get Out Of Each AT9S Pro Set?
Subsidiary DUMBORC
ABOUT DUMBORC
DUMBORC, as the subsidiary of RadioLink, is responsible for the processing and assembly of all RadioLink products. RadioLink products for the retail market, products more tend to premium products. More and more car manufacturers suggest us to design a transmitter without a screen, this transmitter designed for car/boat manufactures that with high-end performance while low price to make sure the customers enjoy the most cost-effective RTR car/boat. So, we let our subsidiary DUMBORC launched a new period transmitters X4, X5, X6 since July 2019. Within the second half of 2019, this period transmitters have been quickly adopted (as RTR) by domestic RC car brands like River Hobby and HNR HOBBY and produced as ODM transmitter by more and more international brands such as TRAXXAS, TAMIYA, CARSON, ABSIMA, LRP, CML, etc.
Trademark registration
Honor&Awards
AT9 (same appearance as AT9S/AT9S Pro) won the German RedDot Design Award.
