Product Description
| Product name | Remote Control Military Army Trucks Toy HG-P801 PRO Acousto-optic 8CH Version U.S. Military Truck With Sound And Light |
| Item Number | HG-P801 PRO 8CH-2 |
| Product size | 74*22*24CM |

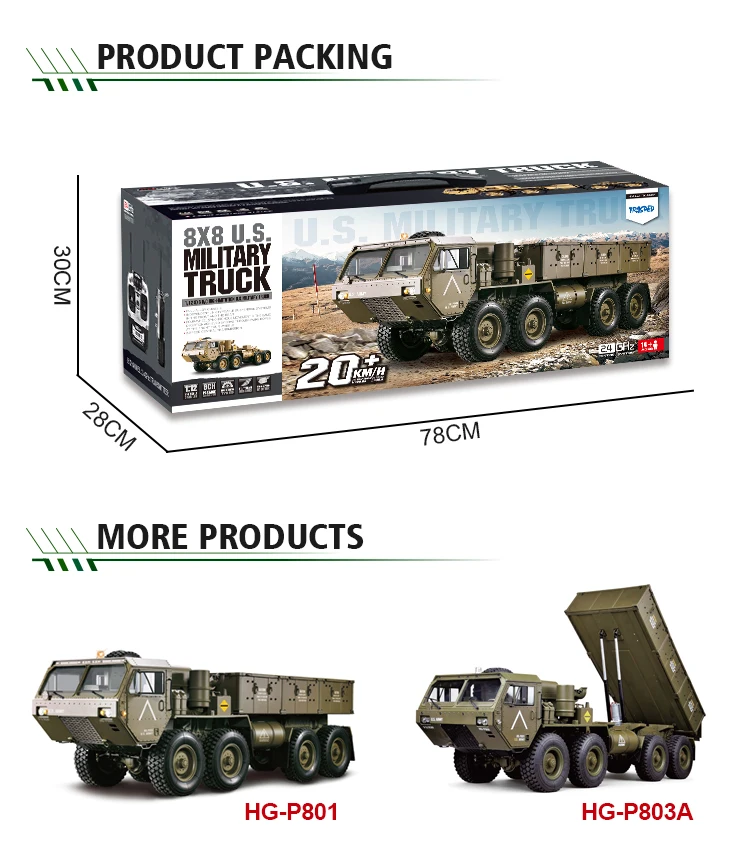

| Packing szie | 78*30*28CM |
| CTN size | 93*29.8*34CM |
| QTY/CTN | 1 PCS |
| G.W/N.W | 13.8/11.4KGS |
| Package | COLOR BOX |
| Color | Army Green |
| Wheelbase | (12.8CM)×25.8CM×(12.8CM) |
| Wheel distance | 21.85CM |
| Wheel diameter | R11.1CM |
| Main functions:

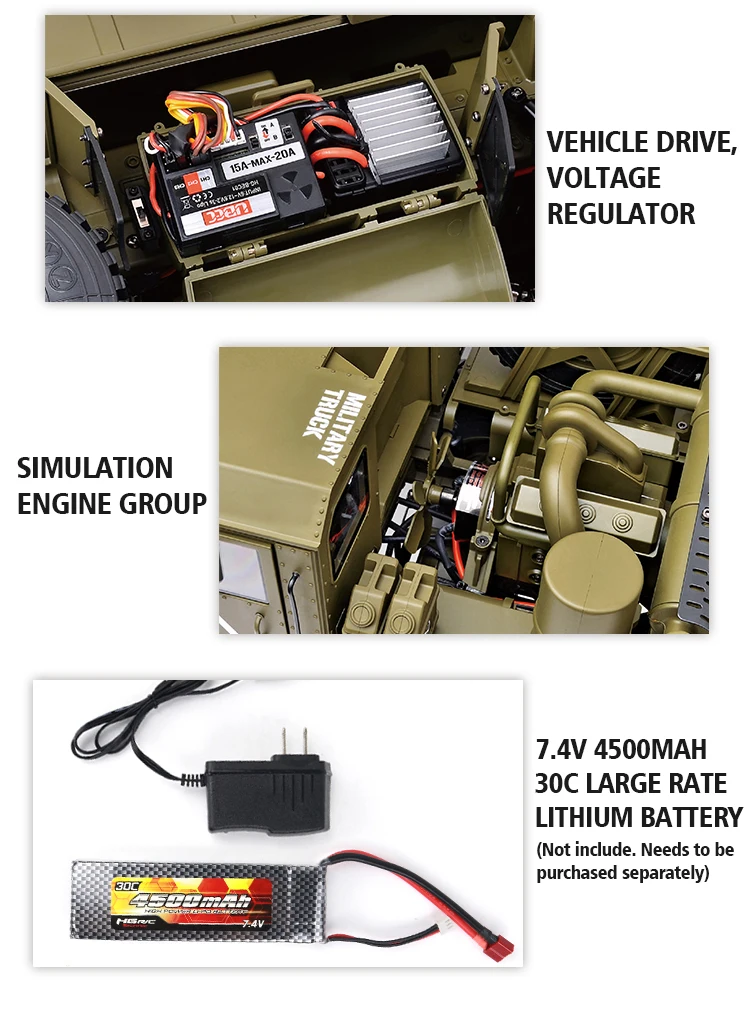

1. 7.4V 3000mAh 30C large-rate lithium battery.

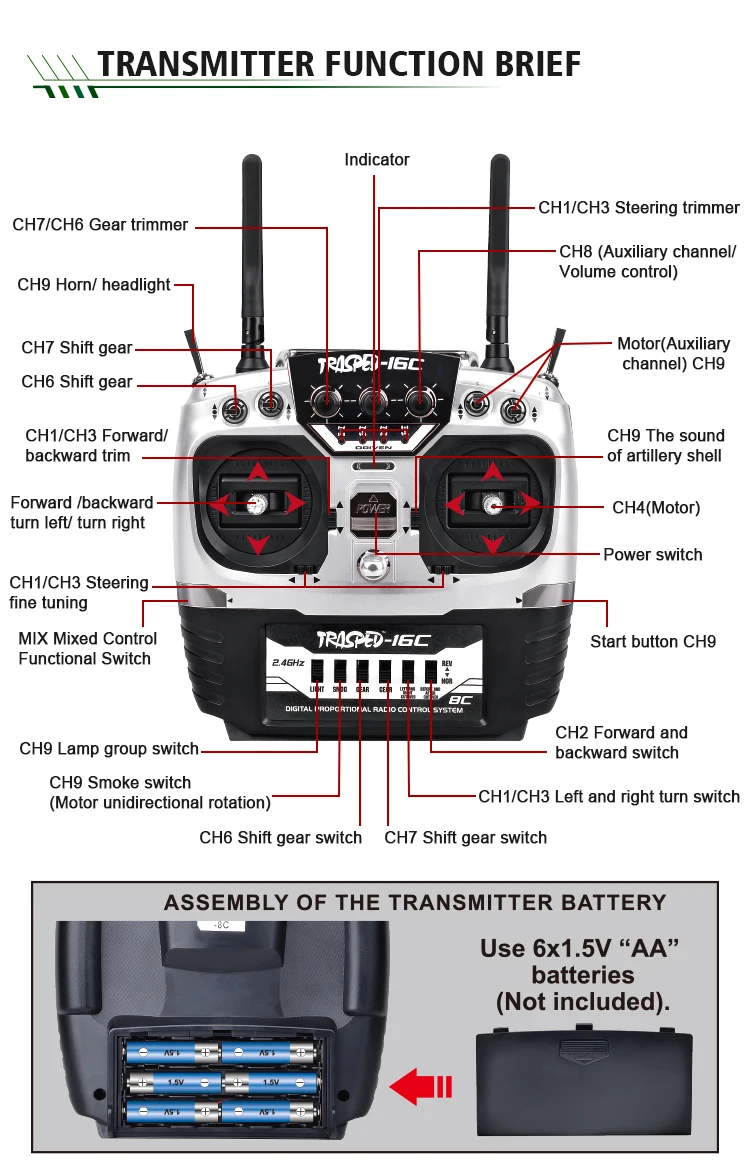

2. 2.4G three-channel automatic frequency matching and full-scale synchronous remote control system
3. 2 9kg copper-tooth digital steering gears (high-power steering)
4. Steering steering gear independent power supply mode
5. The secondary mechanical gear position of the central transmission is adjustable (upgradeable remote control adjustment)

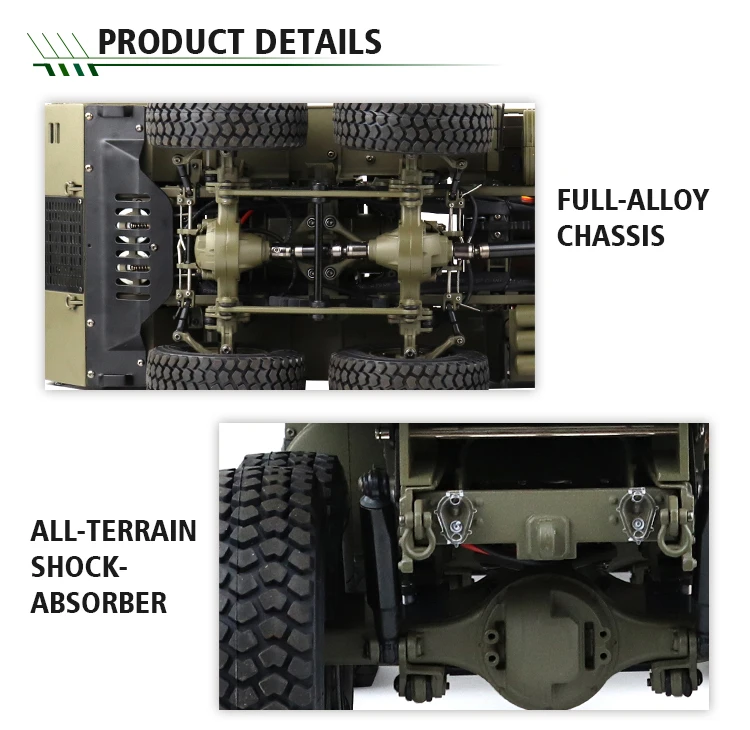

6. The chassis structure of the whole vehicle is made of zinc alloy material
7. The front and rear axles adopt bevel-to-straight-tooth high-load reduction transmission structure. 8. Spring steel sheet shock absorber + telescopic double shock absorber 9. Variable stroke universal drive shaft
10. Front and rear independent linkage bridge suspension system
11. The side panels of the rear side of the car can be fully opened.
12. The aluminum alloy of the body floor

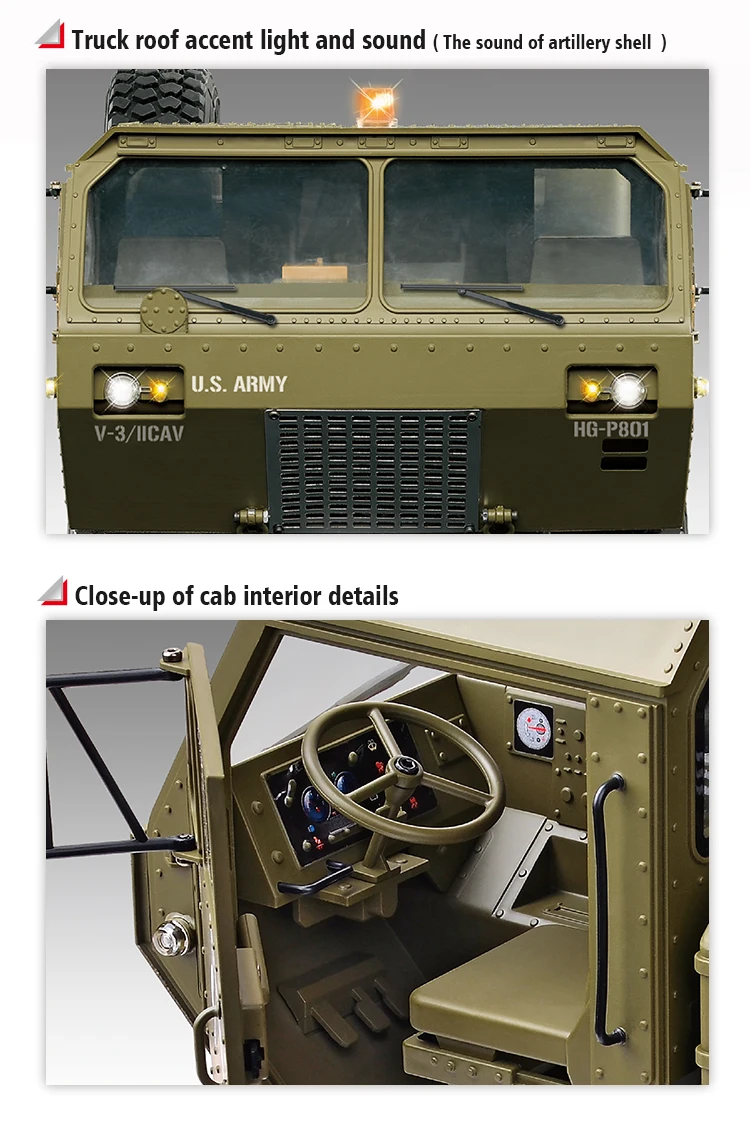

13. 8x8/8-wheel full-time drive, 550 high torque motor (3650 brushless motor) using planetary gear drive structure 14. Vehicle 1:12 full-scale high simulation model; 320A independent electronic governor/45A brushless ESC 15. The lighting combination and simulation sound combination can be upgraded under any platform modification 16. The first 4 wheels adopt a wire rope pulling structure to realize the same direction and synchronous steering of the four wheels |
| Packing List: Manual *1 |

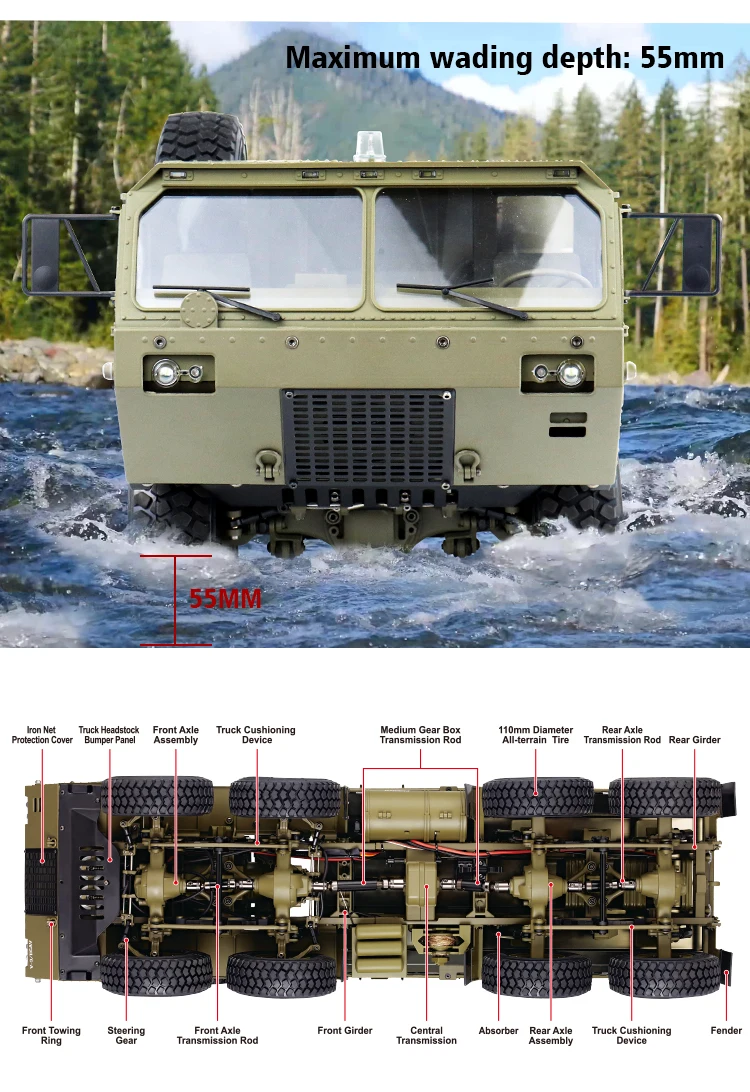

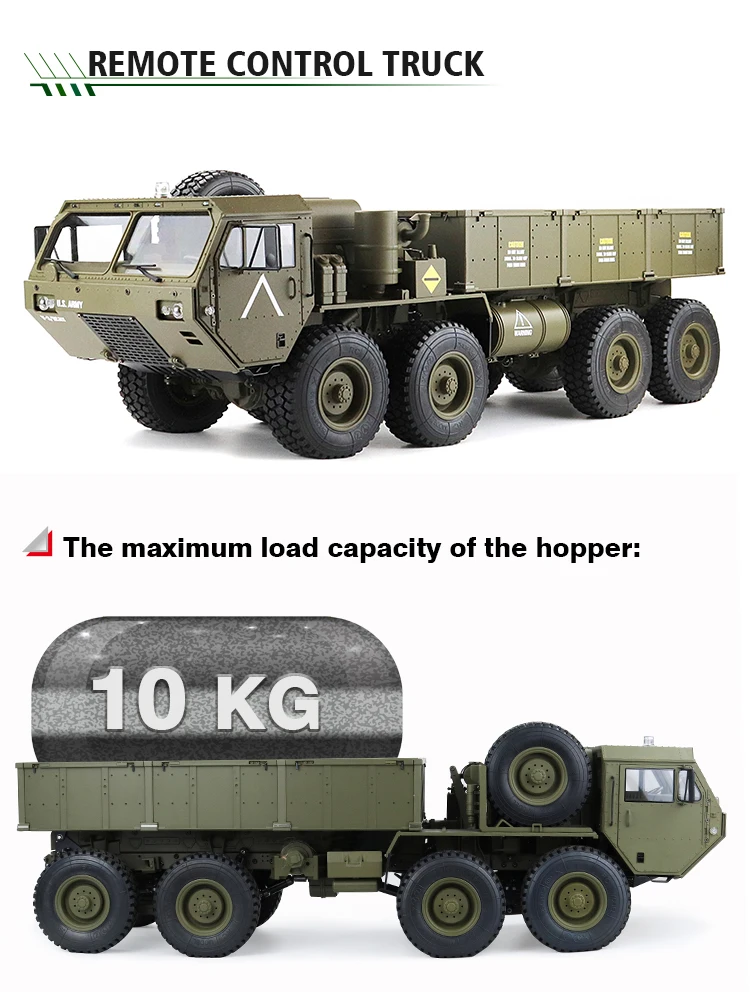

| 1. Maximum climbing angle: 35° in low gear; 15° in high gear 2. Maximum wading depth: 55mm 3. The maximum load capacity of the cargo hopper: 10KG 4. Minimum turning radius: about 1 meter 5. Maximum ditch width: 180mm |
| 1: Charging protection: protection function for battery overcharge and overcurrent. 2: Low voltage protection: The receiver protects when the battery is low. 3: High temperature protection: When the receiver's operating temperature is higher than the setting, the receiver will protect the drive control circuit; it will resume work after the temperature is normal. Remarks: This model is equipped with full-scale synchronous control functions such as forward, backward, left and right turning, and braking. |
